Product Description：

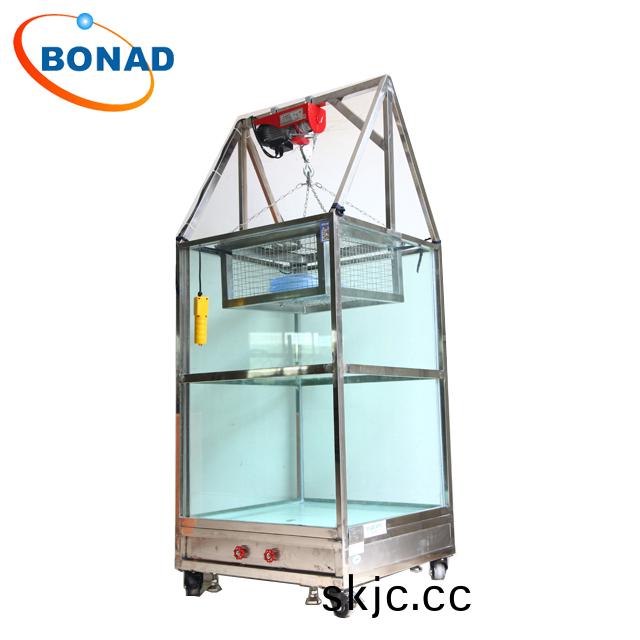

IPX7 Water immersion lifting Test equipment
Model:BND-IPX7AS
1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples.
2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.
No. | Model | BND-IPX7AS-432L | BND-IPX7AS-768L | BND-IPX7AS-1200L |
1 | inside the size (mm) | 600*600*1200 mm | 800*800*1200 mm | 1000*1000*1200 mm |
2 | External dimensions (mm) | 660*660*1400 mm | 860*860*1400 mm | 1060*1060*1400 mm |
3 | Tempered glass thickness (mm) | 12 | 12 | 15 |
4 | test the maximum depth (m) | 1.2m | ||
5 | water level adjustment | manually adjust | ||
6 | Water level display | Stainless steel ruler Visual (number of display 1mm) | ||
7 | frame material | stainless steel side pass | ||
8 | standards | IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7) | ||
